Overview

REVOLUTIONIZING RESIDENTIAL ENERGY STORAGE! Introducing the BigBattery 48V ETHOS system—an innovative, stackable, and scalable solution designed to power your home, solar setup, off-grid homestead, or commercial space. This 5.12kWh battery module is the foundation of the ETHOS system, built to expand up to 80kWh per control box by adding additional modules.

Each module features Tier 1 LiFePO4 cells, the safest and most durable lithium chemistry available today. With 100Ah capacity per module, the ETHOS is designed for long-lasting performance, providing over 4,000–8,000 cycles at 80% Depth of Discharge (DOD). The system’s advanced Battery Management System (BMS) continuously monitors voltage, current, and temperature, while passive cell balancing and an advanced battery control method optimize performance. For added peace of mind, each module is equipped with an integrated fire-extinguishing system.

Designed for easy expansion, the ETHOS is a modular and stackable solution, ideal for residential and commercial applications. The system features standardized, UL-certified ESS connectors, ensuring safe, reliable connections. With an IP65-rated casing, it provides all-weather protection and maximum durability.

Whether you’re planning for emergency backup power or seeking a sustainable energy solution for your home or cabin, the ETHOS offers reliable, efficient power for any need. Installation is easy, with all hardware included for mounting, and each system is built to last over 10 years.

Key Features:

Big Battery | ETHOS | 48V – 5.1kWh | UL1973 | Home Battery Backup LFP

• Capacity: 5.12kWh per module, expandable up to 80kWh
• LiFePO4 Cells for optimal safety and longevity
• 100Ah per module, designed for over 4,000–8,000 cycles at 80% DOD
• Advanced BMS for continuous monitoring and optimization
• Fire-extinguishing module for enhanced safety
• Modular, Stackable Design for easy scalability
• IP65-Rated Enclosure for durability in all weather conditions
• UL-Certified ESS Connectors for reliable power connections

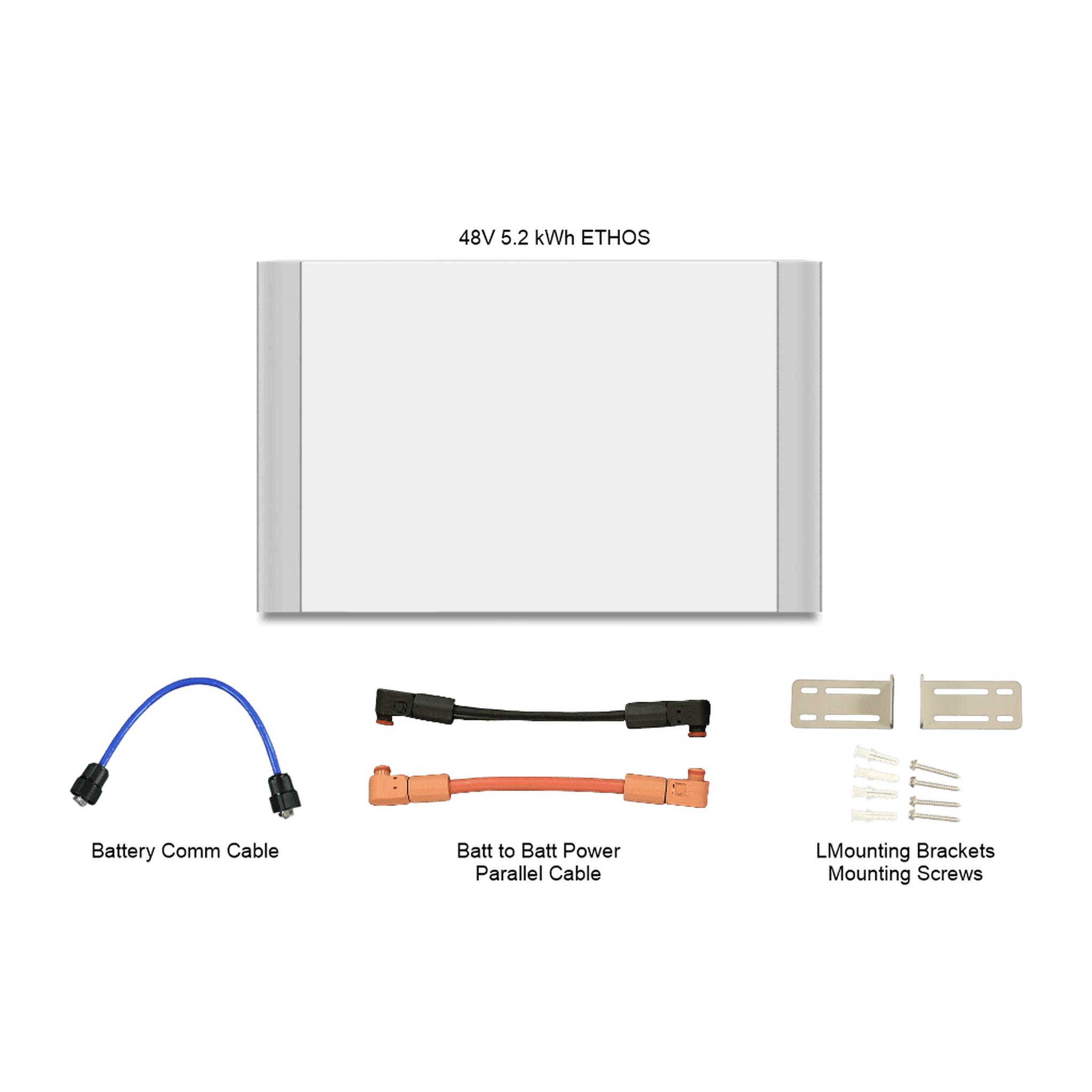

• Easy Wall-Mount Installation with included hardware

Take control of your energy needs today with the 48V ETHOS—designed for reliability, efficiency, and maximum flexibility. Explore the ETHOS system or contact us for a custom quote to perfectly match your energy requirements!
