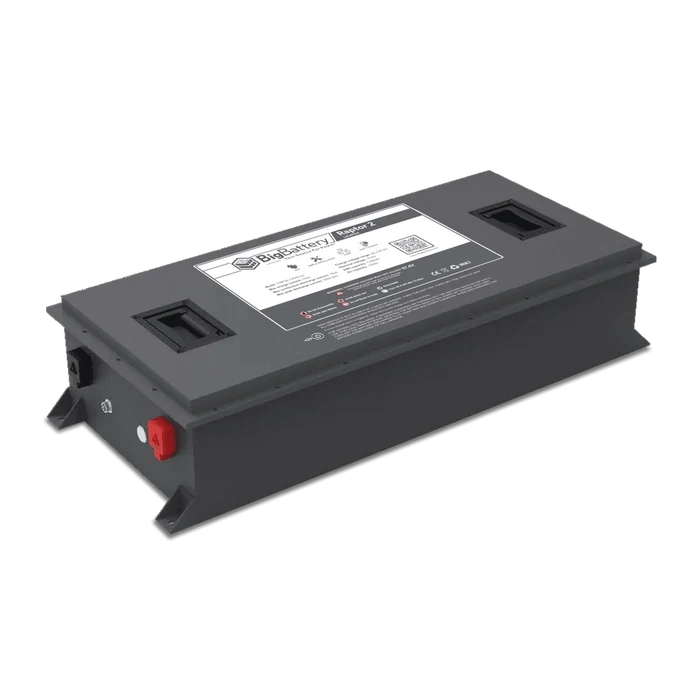

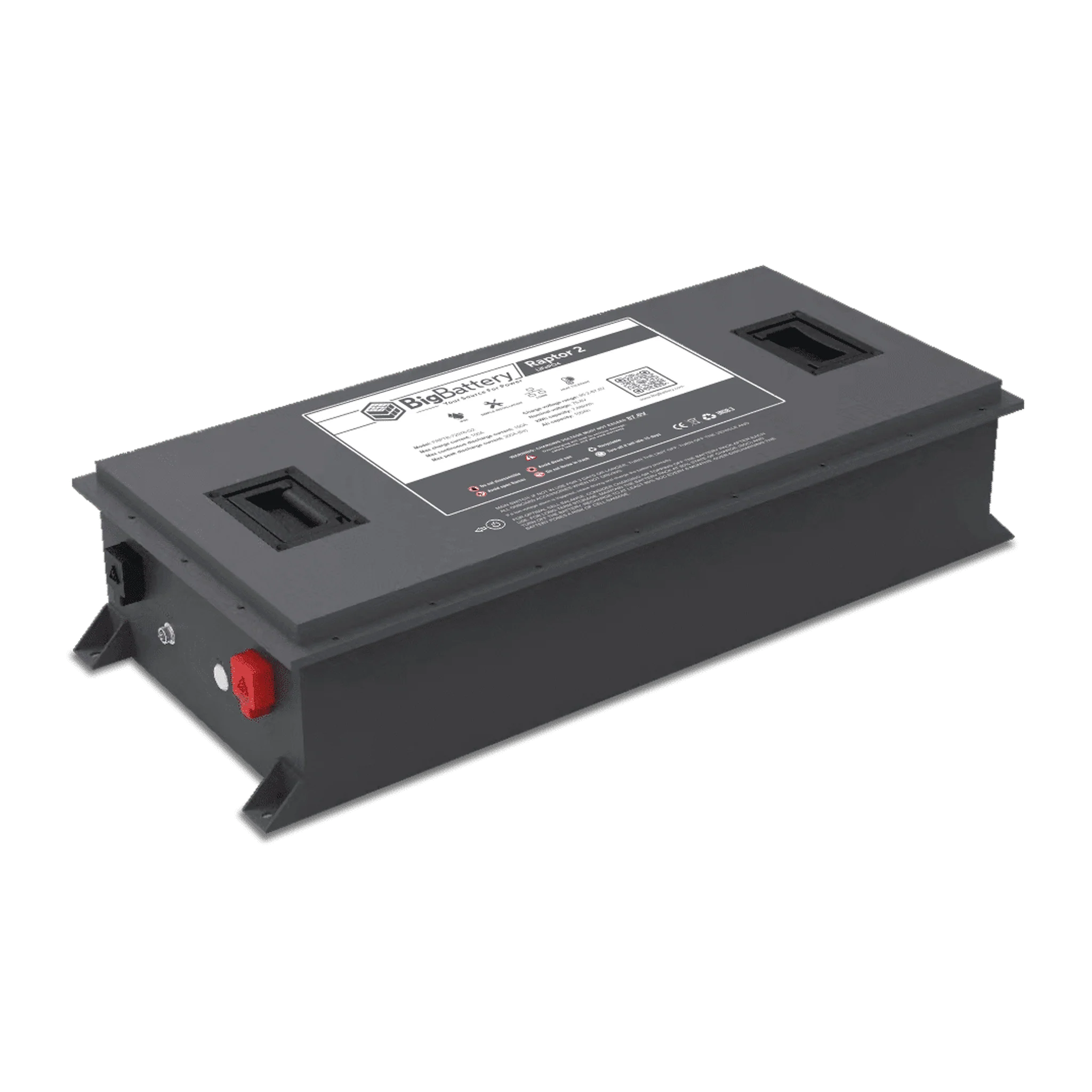

Big Battery | 72V RAPTOR 2 – 7.68kWh LiFePO4
Description
Overview
REVOLUTIONARY 72V POWER IS HERE!
Introducing the 72V RAPTOR 2 from BigBattery, the ultimate solution for powering high-voltage golf carts, transport vehicles, and industrial equipment. With 7.68 kWh of energy capacity packed into a durable, compact form, this battery offers unmatched power and performance.
Designed for safety, longevity, and visibility, the RAPTOR 2 is built with Tier 1 LFP cells, the safest lithium chemistry available. It features an advanced BMS with automatic cell balancing and is housed in an IP65-rated casing that’s resistant to dust and water, ensuring reliable performance in all conditions. But we didn’t stop there—RAPTOR 2 includes an LED State of Charge Indicator and full RS485 communication capabilities, so you can easily monitor the battery’s status and performance in real time.
Equip your golf cart, transport vehicle, or industrial system with the 72V RAPTOR 2, and experience the next level of lithium power. Ideal for use in your neighborhood, at work, or on campus, this high-performance battery ensures you can keep moving forward with confidence.
Big Battery | 72V RAPTOR 2 – 7.68kWh LiFePO4
Key Features
- Voltage: 72V
- Capacity: 7.68 kWh
- Battery Type: LiFePO4 with Tier 1 LFP Cells
- Applications: Perfect for Golf Carts, Transport Vehicles, and Industrial Equipment
- Safety: BMS with automatic cell balancing and IP65-rated dust/water resistance
- Monitoring: LED State of Charge Indicator and RS485 communication
- Design: Compact, energy-dense, vibration-resistant casing

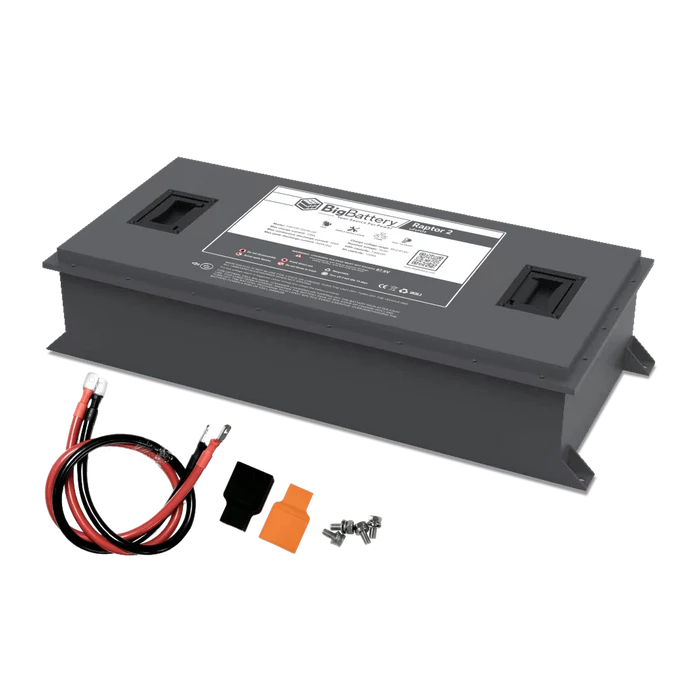

What’s Included
- 72V RAPTOR 2 7.68kWh LiFePO4 Battery
- 1 × 2 AWG 4Ft Red & Black Terminal Cable
- 1 × Red & Black Terminal Rubber Cover
- 4 × M8 Screws
Specs and Downloads
| System Voltage: | 72V |
| Nominal Voltage: | 76.8V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 7.68kWh |
| Ah Capacity: | 100Ah |
| Charging Voltage Range: | 85.2 – 87.6V |
| Max Charge Voltage: | 87.6V |
| Operating Voltage Range: | 72 – 87.6V |
| Suggested Low Voltage Cutoff: | 72 – 76.2V |
| BMS Cutoff Range: | 66V – 70.5V |
| Cell Configuration: | 24S |
| Max Continuous Discharge Current: | 150A |
| Max Continuous Power: | 7680W |
| Max Discharge Peak Current: | 300A (Max 5 seconds) |
| Max Charge Current: | 100A |
| Charge Temperature Range: | 32°F – 113°F (0°C – 45°C) |
| Discharge Temperature Range: | -4°F – 149°F (-20°C – 65°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months, SoC >50%) |
| Weight: | 143 lb (64.9 kg) |
| Depth: | 15.4 in (391 mm) |
| Width: | 34.5 in (876 mm) |
| Height: | 7.4 in (188 mm) |
| Protection Rating: | IP65 |
| Communications: | RS485 |
