RUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

$3,059.00

RUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

Name: RUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP - Ever Volt Supply
Price: 3059.00 USD
Availability: InStock

16kWh lithium battery, 16kWh LiFePO4 battery, 51.2V 314Ah lithium battery, RUiXU Lithi2-16 battery, 51.2V solar battery, 16kWh solar battery storage, LiFePO4 solar battery, lithium iron phosphate battery, home energy storage battery, residential solar battery, commercial energy storage battery, off-grid lithium battery, solar backup battery, whole home battery backup, 48V lithium battery, 51.2V LFP battery, deep cycle lithium battery, high capacity solar battery, renewable energy storage battery, home solar energy storage, solar power backup battery, lithium battery energy storage system, long-life LiFePO4 battery, 16kWh home battery storage, scalable battery energy storage system.

RUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

Product Type: Lithium Iron Phosphate (LiFePO4 / LFP) Battery
Model: RUiXU Lithi2-16
Nominal Voltage: 51.2V
Nominal Capacity: 314Ah
Nominal Energy: 16.07kWh
Usable Battery Capacity: 16kWh
Battery Chemistry: LiFePO4 (Lithium Iron Phosphate)
Operating Voltage Range: 43.2V–58.4V
Charge Voltage: 56.8V
Maximum Charge Voltage: 58.4V
Recommended Charge Current: 140A
Maximum Charge Current: 200A
Recommended Discharge Current: 140A
Maximum Discharge Current: 200A
Maximum Discharge Power: 10kW
Peak Discharge Current: 240A for 15 seconds / 360A for 1 second
Rated DC Power: 7kW
Cycle Life: ≥9,500 cycles at 80% depth of discharge (DOD)
Design Life: Approximately 15 years
Operating Temperature – Charging: -25°C to 55°C (-13°F to 131°F)
Operating Temperature – Discharging: -20°C to 55°C (-4°F to 131°F)
Storage Temperature: -20°C to 45°C (-4°F to 113°F)
Communication: CAN Bus / RS485
Expansion: Supports multiple batteries connected in parallel for scalable residential and commercial energy storage

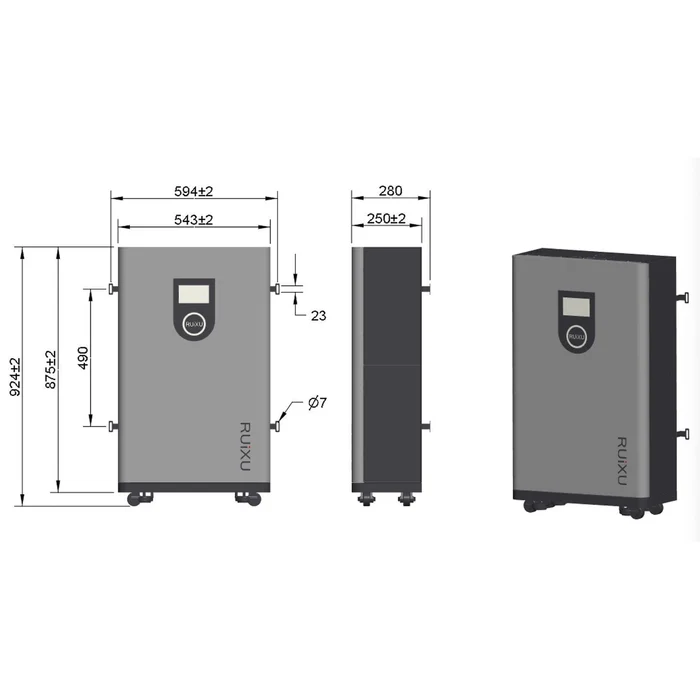

Dimensions: 924 × 543 × 250 mm (36.3 × 21.3 × 10 in), including wheels
Approximate Weight: 137–145 kg (302–320 lb), depending on configuration/source specification
Enclosure: Electro-coated metal enclosure designed for outdoor use
Protection: All-pole protection with fuse and micro circuit breaker
Battery Management: Intelligent cell balancing and integrated BMS protection
Self-Heating: Integrated self-heating function for cold-temperature operation
Mounting: Floor/wheel-mounted configuration
Certifications/Standards: UL 1973, UL 9540A, UL 9540, IEC 62619
Market Programs: CEC / SGIP listed or eligible configurations as specified by manufacturer
Warranty: 10-year warrantyRUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

Compatible Inverter Communication: Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, GoodWe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider and other supported inverter platforms.

Recommended Applications:
Residential solar energy storage, home battery backup, whole-home backup power, off-grid solar systems, hybrid solar systems, commercial energy storage, renewable energy storage, solar battery banks, emergency backup power, energy independence systems, peak-load management and large-capacity battery storage.

Description

RUiXU | Lithi2-16 16kWh Lithium Battery | 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

The RUiXU Lithi2-16 is a premium-grade LiFePO4 (lithium iron phosphate) battery designed for residential and commercial energy storage. Delivering 51.2V at 314Ah, it offers a substantial 16.07 kWh capacity, backed by a robust cycle life of over 9,500 cycles at 80% DOD. This intelligent, wall-mountable system is engineered for long-term performance, safety, and convenience, making it ideal for solar storage, backup power, and off-grid applications.

RUiXU | Lithi2-16 16kWh Lithium Battery 51.2V 314Ah | UL1973/9540A/9540 Certified | CEC & SGIP

KEY FEATURES

Massive 16kWh Capacity
Ideal for large-scale residential and commercial energy storage applications.

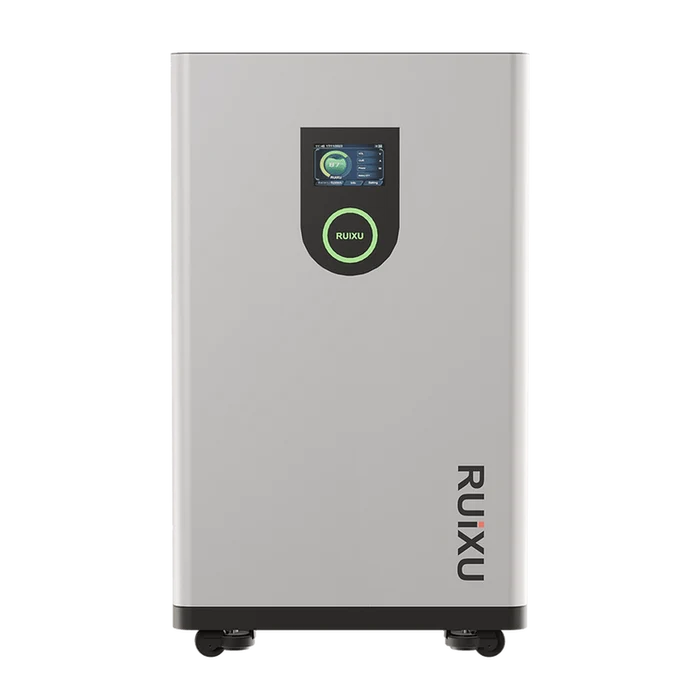

5” LCD Touchscreen Interface
Real-time monitoring and intuitive settings via a capacitive onboard display.
Advanced Fire Protection
Integrated Perfluorohexane module enhances internal safety and protects against thermal events.
Quick-Connect Terminals (250A Rated)
Simplifies setup with secure, tool-less plugs that resist heat and loosening.
Heavy-Duty Mobility & Mounting
Built-in concealed wheels and anti-tip wall mount for easy transport and safe installation.
Accessible Maintenance Port
Inspection window for fast access to BMS and fuse systems.

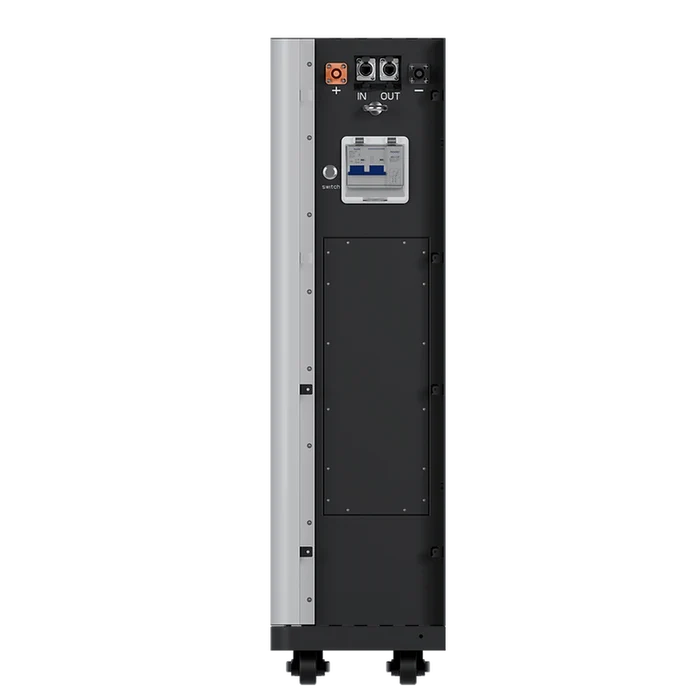

Dual Terminal Protection
Includes a fuse on the negative and micro circuit breaker on the positive, ensuring all-pole electrical safety.
Smart Cell Balancing System
Double-level equilibrium control optimizes battery life and performance.
Self-Heating for Cold Environments
Allows reliable charging and discharging in low-temperature conditions.
Electro-Coated Steel Enclosure
Rugged, corrosion-resistant case suitable for indoor and outdoor environments.

Communication & Inverter Compatibility

CANbus:
Seamlessly integrates with Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider.
RS485:

Compatible with MPP, Voltronic, RCT, Alpha, and Outback
