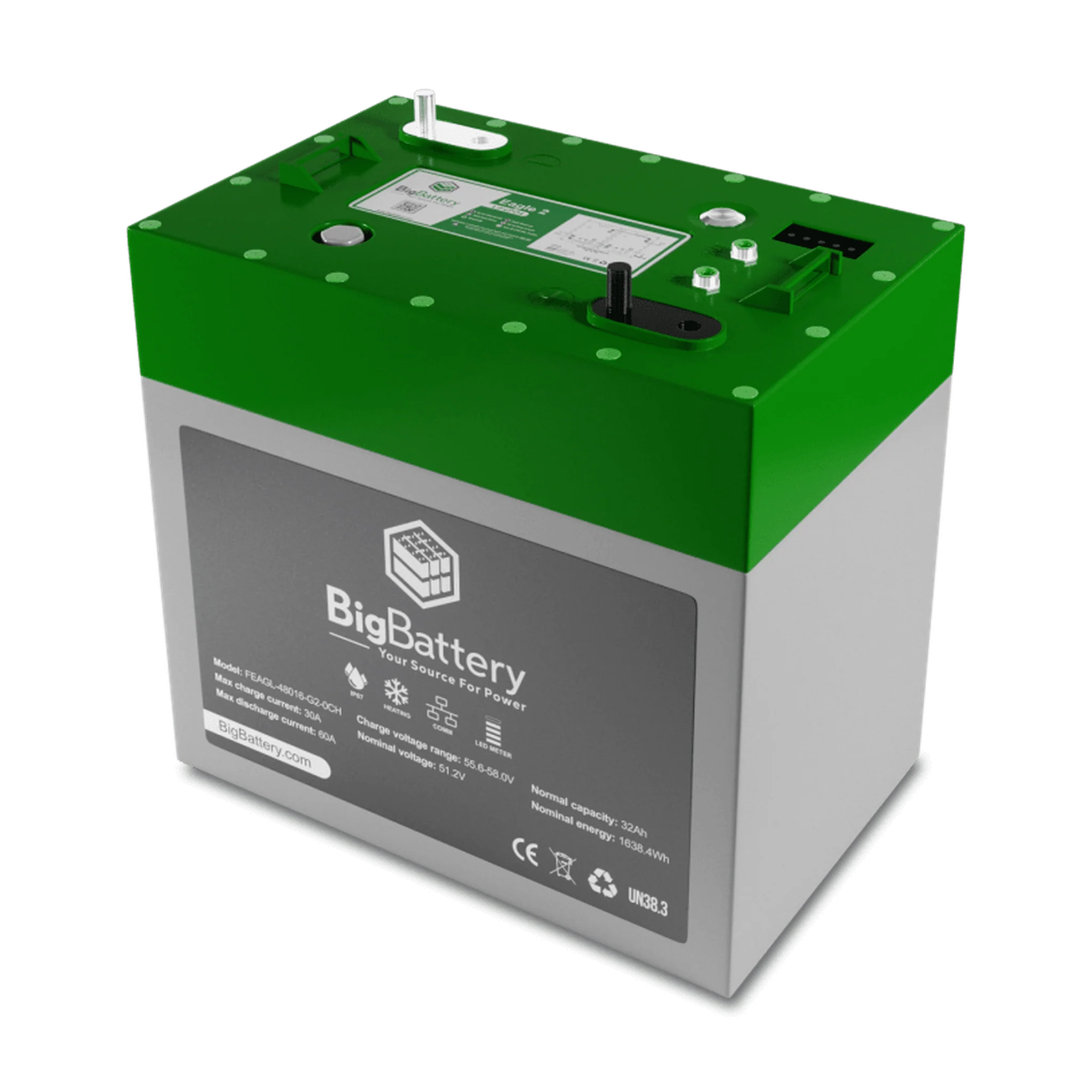

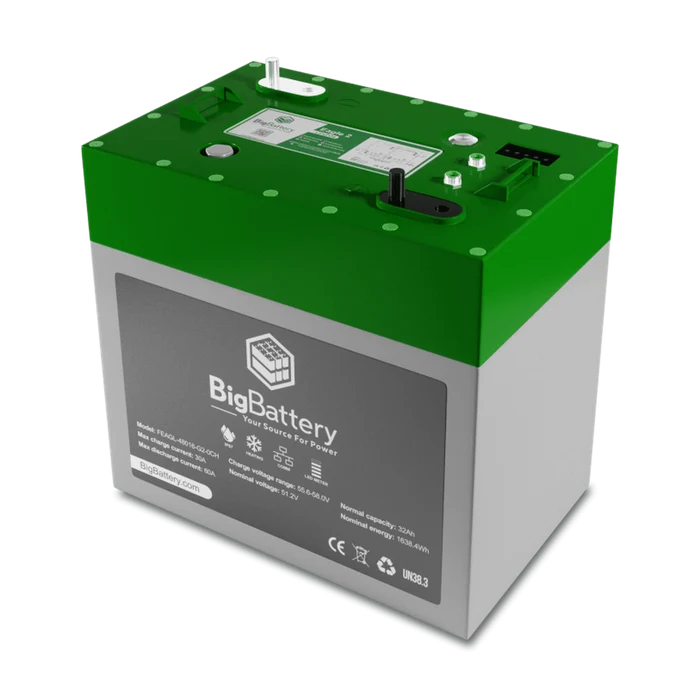

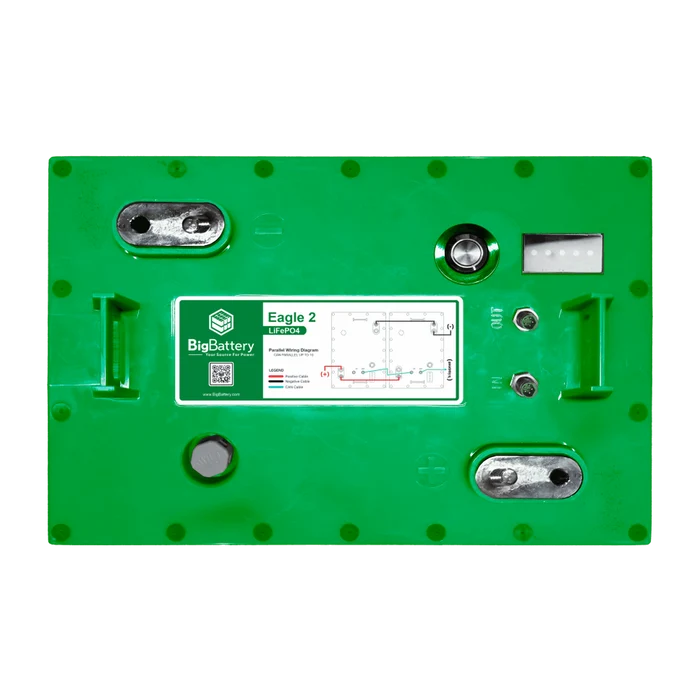

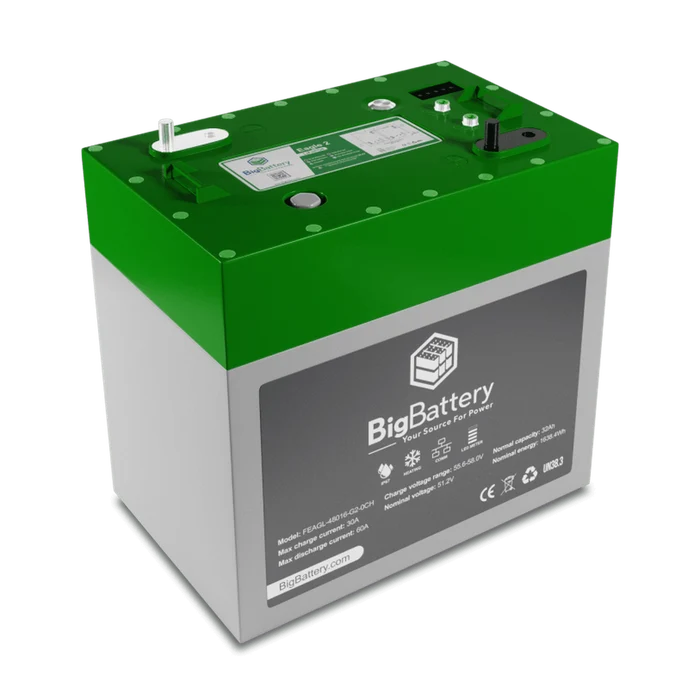

Big Battery | 48V EAGLE 2 – LiFePO4 – 32Ah – 1.63kWh – Golf & Utility Cart Battery
Description
Overview
INTRODUCING THE ALL-NEW 48V EAGLE 2!
BigBattery’s latest 48V 1.63 kWh LiFePO4 EAGLE 2 sets a new standard in lithium battery power, delivering the reliability and durability you expect. Built with Tier 1 LFP cells in a compact GC2 form factor, this energy-efficient design is perfect for golf carts, utility vehicles, RVs, and camper vans, and can replace any T-105 lead-acid battery.
Beyond just energy storage, the EAGLE 2 offers a range of advanced features for enhanced safety and convenience. It includes an LED capacity meter on top for quick power status checks and supports CANBus communication protocols to easily monitor performance. With its IP67 rating, the EAGLE 2 is protected against dust, water, and other elements, making it ideal for any outdoor adventure.
Built for All Seasons:
The EAGLE 2 is designed to power you through any season. Whether you’re cruising on a hot summer day or heading off for a winter boondocking trip, the EAGLE 2’s advanced BMS and self-heating function ensure reliable power no matter the temperature.
Durable & Efficient:
Forget about unreliable power sources. The EAGLE 2 delivers exceptional performance for your adventures, allowing you to focus on making memories instead of worrying about energy. Upgrade your current system with the EAGLE 2, and enjoy the convenience of lithium-ion power that just works.
Big Battery | 48V EAGLE 2 – LiFePO4 – 32Ah – 1.63kWh – Golf & Utility Cart Battery
Key Features:
- Battery Type: 48V 1.63 kWh LiFePO4
- Capacity: 1.63 kWh
- Form Factor: Compact GC2 design
- Cell Type: Tier 1 LFP
- Applications: Perfect for golf carts, utility vehicles, RVs, and camper vans
- Advanced BMS: Built-in Battery Management System with self-heating function
- Communication: CANBus compatible for easy system integration
- Durability: IP67 rated for water and dust protection
- LED Capacity Meter: For easy status tracking
- Temperature Range: Works in a wide temperature range for all-season use

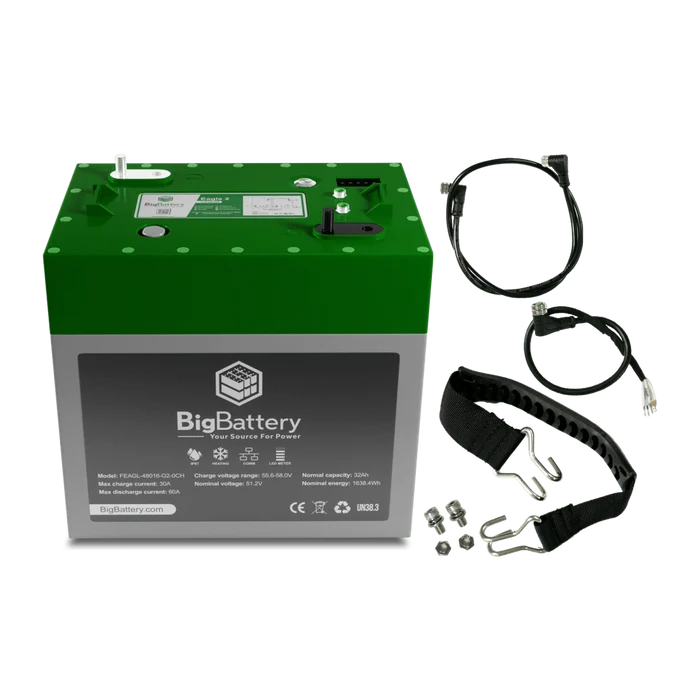

What’s Included
- 1 x 48V EAGLE 2 | LiFePO4
- 1 × Eagle 2 Carrying Handle
- 1 × Eagle 2 CAN Comm Cable
- 1 × Parallel CAN Comm Cable
- 2 × M8 Nuts & Screws
Specs and Downloads
| System Voltage: | 48V |
| Nominal Voltage: | 51.2V |
| Chemistry: | LiFePO4 |
| kWh Capacity: | 1.63kWh |
| Ah Capacity: | 32Ah |
| Charging Voltage Range: | 55.6 – 58V |
| Max Charge Voltage: | 58.4V |
| Operating Voltage Range: | 48 – 58.8V |
| Suggested Low Voltage Cutoff: | 48 – 50.8V |
| BMS Cutoff Range: | 42 – 47V |
| Cell Configuration: | 16S |
| Max Continuous Discharge Current: | 60A |
| Max Continuous Power: | 3072W |
| Max Discharge Peak Current: | 200A (Max 3 seconds) |
| Max Charge Current: | 30A |
| Charge Temperature Range: | -4°F – 131°F (-20°C – 55°C) |
| Discharge Temperature Range: | -4°F – 140°F (-20°C – 60°C) |
| Optimal Discharge Temperature Range: | 59°F – 95°F (15°C – 35°C) |
| Storage Temperature Range: | 23°F – 95°F (-5°C – 35°C) (Max 3 months) 32°F – 77°F (0°C – 25°C) (Max 12 months) |
| Weight: | 38 lb (17.2 kg) |
| Depth: | 7.1 in (180 mm) |
| Width: | 10.2 in (260 mm) |
| Height: | 10.8 in (274 mm) |
| Max Connections: | Up to (10) Parallel |
| Protection Rating: | IP67 |
| Communications: | CANBus |
| Self-Heating: | Yes |
